Authentication for Card91 APIs

Introduction

Card91 APIs are REST-based APIs with a custom authentication header using a bearer token. For generating the bearer token, you will need to create an API Admin user via the business portal.

Each API Admins has unique

• API Key: A key that uniquely identifies an API Admin
• and API Secret: A secret key for this API Admin that is used to create signed requests. As the name suggests, this value is supposed to be secret and should never be exposed.

Authentication

All API requests require HTTP Authentication using Bearer Tokens. The bearer token is a short lived token which needs to be generated by the caller. The header to be passed is

Authorization: Bearer <generated token>

We recommend generating the bearer token on every request. This should be done on the server side, to safeguard your secret.

How to generate the bearer token

The bearer token is a JWT token. The API key and Secret are needed to generate bearer tokens. The key and secret can be used indefinitely, till they are explicitly revoked.

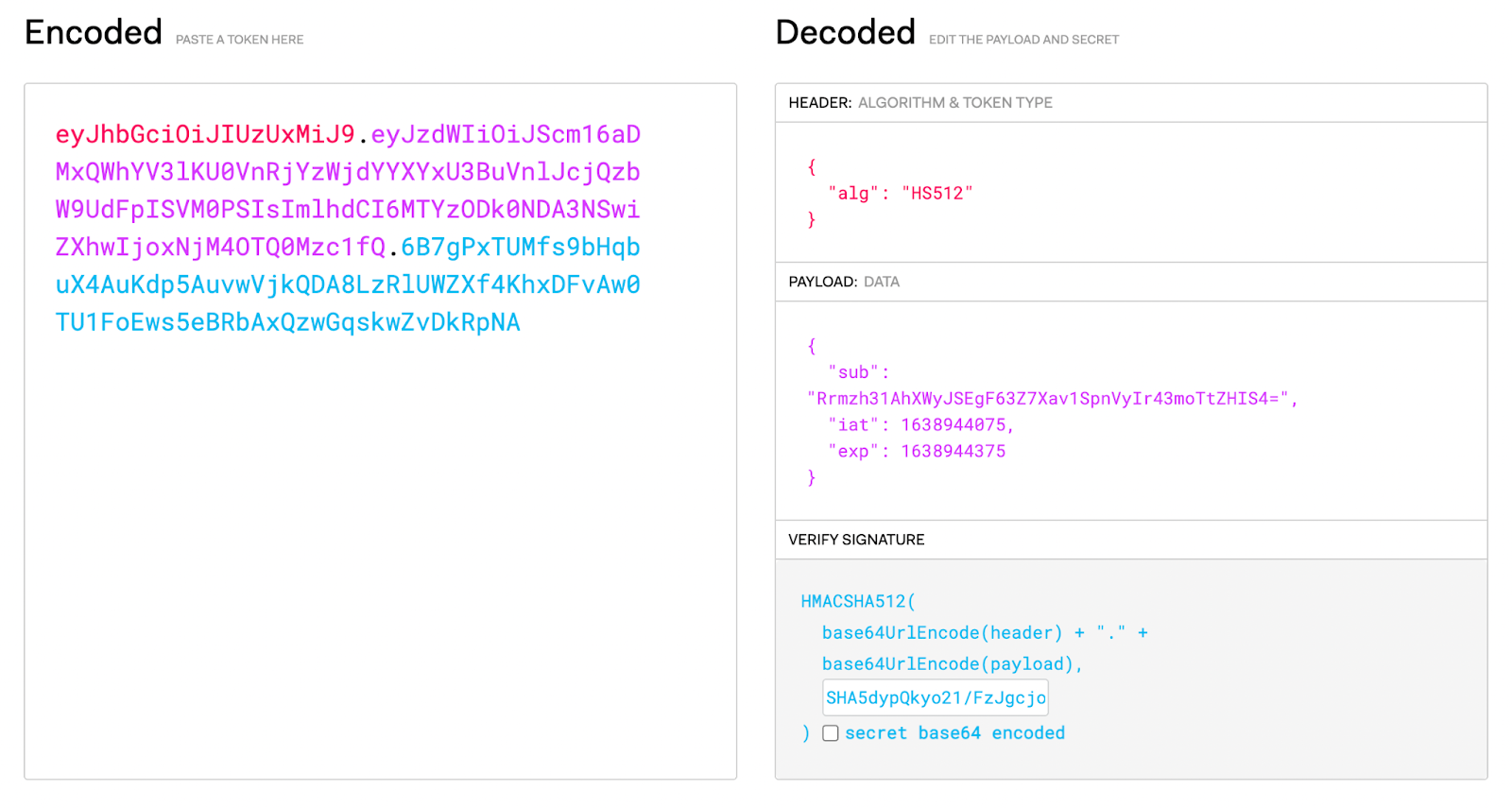

Tip: You can try generating tokens manually at https://jwt.io/. Here is a sample

JWT Token Values

JWT Header

We use the HS512 algo, so the header is always

{
    "alg": "HS512"
}

JWT Payload

Following values are required in the payload

sub: the API Key
iat: current time in seconds (since EPOCH)
exp: token expiration time in seconds (since EPOCH). Maximum is 10 minutes from the current time. We recommend keeping it at 2-5 minutes from the current time value.

So a sample payload looks like

{
    "sub": "Rrmzh31AhXWyJSEgF63Z7Xav1SpnVyIr43moTtZHIS4=",
    "iat": "1638944075",
    "exp": "1638944375"
}

JWT Verify Signature

You need the API Secret to generate the Verify Signature. It is

HMACSHA512(
  base64UrlEncode(header) + "." +
  base64UrlEncode(payload),
  <your-API-secret>
)

Sample Javascript Code to generate the JWT Token

JWT Token generation

const CryptoJS = require("crypto-js");

function base64url(source) {
    // Encode in classical base64
    let encodedSource = CryptoJS.enc.Base64.stringify(source);

    // Remove padding equal characters
    encodedSource = encodedSource.replace(/=+$/, '');

    // Replace characters according to base64url specifications
    encodedSource = encodedSource.replace(/\+/g, '-');
    encodedSource = encodedSource.replace(/\//g, '_');

    return encodedSource;
}

let apiKey = "insert api_key here";
let apiSecret = "insert api_secret here";

const tokenHeader = {
    "alg": "HS512",
};

const stringifiedHeader = CryptoJS.enc.Utf8.parse(JSON.stringify(tokenHeader));
const encodedHeader = base64url(stringifiedHeader);

const tokenData = {
    "sub": apiKey,
    "iat": Math.round(Date.now()/1000),
    "exp": Math.round(Date.now()/1000+5*60)
}

const stringifiedData = CryptoJS.enc.Utf8.parse(JSON.stringify(tokenData));
const encodedData = base64url(stringifiedData);

const authToken = encodedHeader + "." + encodedData;

let signature = CryptoJS.HmacSHA512(authToken, apiSecret);
signature = base64url(signature);

const signedToken = authToken + "." + signature;

console.log("Bearer Token:", signedToken);

Using the JWT Token to make API calls

For all APIs, this token is passed in the Authorization header as follows

Authorization: Bearer <generated token>
